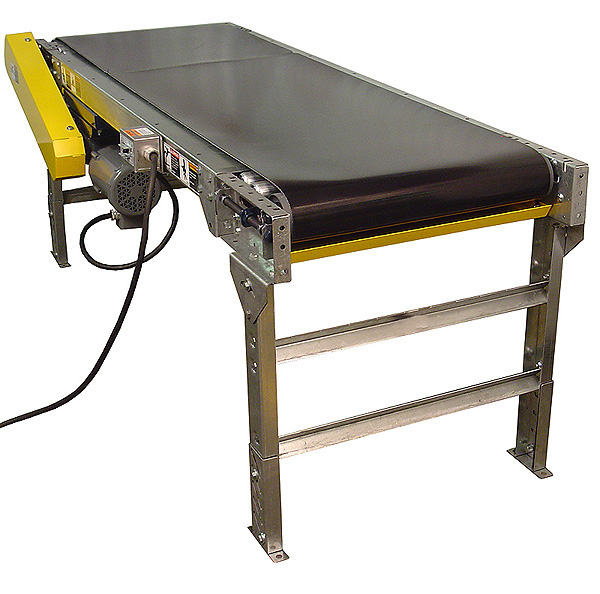

If you want to transport boxes, totes, wood sheets, packaged goods, furniture or any other irregularly shaped objects then belt conveyor is the product you need. Belt conveyor is a versatile powered conveyor solution and can be used in conjunction with gravity roller & skatewheel conveyor as well as other powered roller conveyor to create almost any custom conveyor system you can dream up.
If you're familiar with belt conveyors, then you already know that the majority of maintenance that goes into belt conveyors is spent on tracking. Some consider properly tracking a conveyor belt to be an art as over tensioning, incorrect assembly and several other factors can make it a very tricky task.
Fortunately - the belts on these power conveyors are specially designed to solve most of the tracking issues typically associated with traditional PVC belts. This belt is composed of a polyester fabric with a PVC embossed cover. This belt features low noise, a low coefficient of friction, excellent tracking characteristics, flexibility, good edge integrity and is flame retardant to ASTM D-378.
7' Long Units include (2) H-Style Leg Supports
12' Long Units include (3) H-Style Leg Supports
22' Long Units include (4) H-Style Leg Supports
- All supports are 30" to top of roller
Conveyor Specifications
- 4" dia. drive pulley, 4" dia. tail pulley
- 60 feet per minute maximum

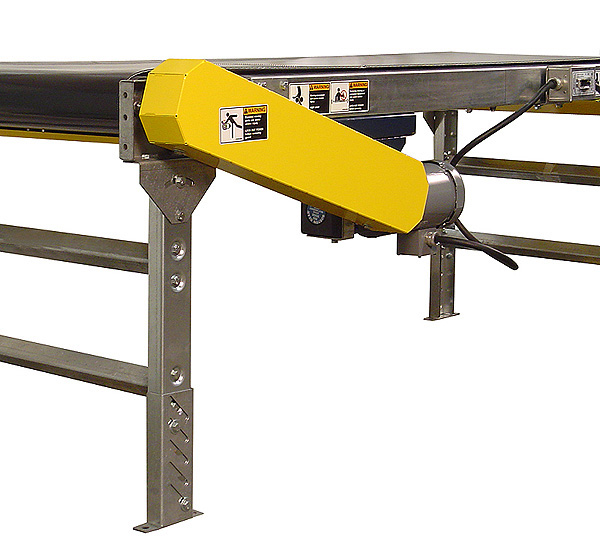

- Underhung left end drive
- Bolted construction
- 3-1/2" x 12 ga. galvanized formed steel slider bed
- 100#/lineal foot Max. Capacity
Motor & Electrical Specifications

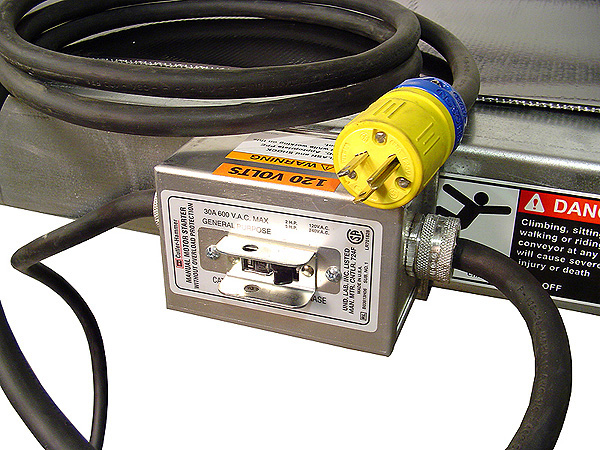

- (1) Manual Motor Starter - On/Off Switch
- 115VAC - 1 phase line voltage
- Wired for mounting within 3' of drive, non-reversing
Belt Specifications
- Nominal Thickness: 0.100" (2.54 mm)
- Weight: 0.062 lbs/in/ft (3.6 kg/m²)
- Minimum Pulley Diameter: 16." (38.1mm)
- Admissible Tensile Force per Unit/Width: 137 lbs/in (24 N/mm)
- Continuous Operating Temp: -10F - +180F (-23C - +82C)
- Coefficient of Friction: 0.25 (on slider bed of pickled steel sheet)
- Conveying Surface: Polyester fabric w/PVC embossed cover
- Underside: PVC Impregnated Friction Surface
- Color: Black
|
Usually Ships within 2 - 4 Days *
