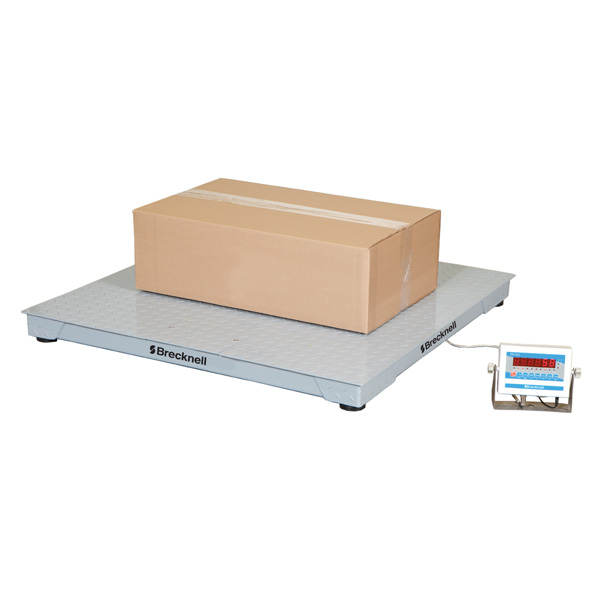

Industrial Floor Scale with Display
Industrial Floor Scale with DisplaySBI-505 Digital DisplayRamp for Scale Combo System
Click These for Larger Photos
  • Prices
  • Description
  • Shipping Information

DescriptionPriceQuantity
4' X 4' - 5,000# cap. - Freight Included$976.00 Add to Cart
5' X 5' - 5,000# cap. - Freight Included$1228.00 Add to Cart
4' X 4' - 10,000# cap. - Freight Included$1060.00 Add to Cart
5' X 5' - 10,000# cap. - Freight Included$1312.00 Add to Cart
Add-on Ramp - 4' x 4', 5K - 10K cap.$385.80 Add to Cart
Add-on Ramp - 5' x 5', 5K - 10K cap.$469.00 Add to Cart
* Denotes Item(s) on Sale

PRICES ON SCALE COMBOS INCLUDE FREIGHT
Order this combo floor scale/digital display kit and you'll be up and weighing your pallets in no time. Freight to any of the continental United States is Included in the price of these combo units.

SCALE
Extremely accurate and durable, this scale performs exceptionally well in applications located in tough industrial environments, including outdoor dock applications. NTEP-certified "legal for trade" for 5,000 divisions, Class III use, these rugged scales incorporate a mild steel construction, IP65 rated load cells, a diamond tread plate safety deck, and a complete junction box assembly.

General Specifications:
Capacity: 2K to 20K lb
Size: 4'x4' & 5'x5'
End Load Capacity: 100% full scale
mV/V Output: 1.50-1.87 mV/V nominal
Cable Length: 20 feet (6.1m)
Height: 3.5 inches (82.6mm)
Warranty: 5 year limited warranty
Load Cells are IP65 Rated

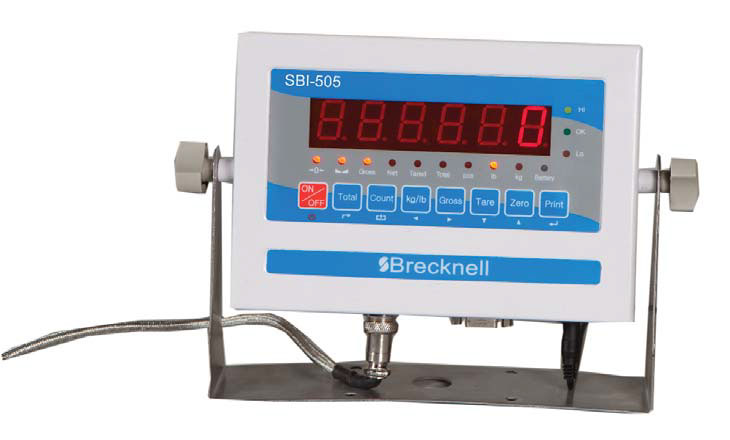

DISPLAY
These digital scale displays are general purpose, "no frills" digital indicators housed in a painted, mild steel enclosure. These can display up to 30,000 divisions and supply enough current for up to six 350-ohm load cells. All setup parameters may be entered via the front panel keys.

These units use a female DB9 connection RS-232 serial format for communication with many types of attached support equipment. These units can transmit data on demand, or continuously in a popular data protocol to match a wide variety of printers, remote displays, or personal computers.

Standard Features:
  • High Quality / Low Cost
  • NTEP Approved for 5,000 divisions
  • Female DB9 RS-232 connection
  • Six digit 20mm (0.8") high red LED
  • Displays up to 30,000 graduations
  • Drives up to six 350-ohm Load Cells
  • Full Front Panel Configuration/Calibration
  • Stainless desk or wall mount stand
  • Operates on AC Adapter (included)

Specifications
Construction: Painted mild steel with stainless steel
desk stand or wall mount stand
Dimensions: 47 mm (W) x 220 mm (L) x 149 mm (H)
1.875" W x 8.675" L x 5.875" H
Finish: Powder coat paint
Rated: IP65
Load Cell Capability: 6 @ 350 ohm
Excitation: 5 VDC
Internal ADC: 2,000,000
Display Resolution: up to 30,000
Display: Six digit 20 mm (0.8") high red LED
Annunciators: -0-, motion, Gross, Net, tared, Total, pcs, lb, kg, Lo, OK, Hi
Interface Cable Connectors Included
RS-232: Female DB9 connection
Time and Date: Military format
Operator Keys: On/Off, Total, Count, kg/lb, Gross, Tare, Zero, Print
Operating Temp: -10 C to 40 C (14 F to 104 F)
Power: 120/220VAC 60Hz/50Hz
Output: 9 VDC - 12 VDC center positive
Calibration: Front panel accessible
Accuracy: NTEP at 5,000 divisions, Class lll
Shipping Weight: 1.7 kg (3.75 lb)
Packaging Dimensions:
279.5 mm (L) x 184 mm (W) x 266.5 mm (H)
11" L x 7.25 W x 10.5 H
Certifications: NTEP CC #11-082
Packaging Contents: Indicator, stand, power supply, manual, RS-232 connector, lead seal, load cell connector and knobs

Usually Ships within 3 - 6 Days *
Shipping information and costs for this item will be emailed to you when you submit your order. NO orders are processed prior to ship costs being sent and confirmed by you.


Customers Who Bought This Item Also Purchased


View Previous Item

View Next Item

Product Reviews
Average Customer Rating  5 Stars  (Based on 9 reviews)
Write a Review
> Read All Reviews   Scales > Floor Scale/Display Combos
This accurate and durable floor scale/display combo performs well in tough industrial environments.
Price Range Range: $385.80 - $1312.00

Most Helpful Customer Reviews
(7 out of 10 people found this review helpful)
Jim Anderson from Minneapolis
We purchased both the digital display unit and the 5000# floor scale and both work without any problems at all. Our employees find it to be a very easy scale to use.
Was this Review Helpful to you?    yes no

(6 out of 15 people found this review helpful)
William Findley from IL
We use the ramp for weighing loads using pallet jacks to put the loads on the scale. The ramp is long enough so that the incline is gradual making even 5000# pallets easy to get on the scale. The ramp works well and would recommend it to anyone using pallet jacks to move their loads on this scale.
Was this Review Helpful to you?    yes no

(5 out of 9 people found this review helpful)
J.G. Kelly from OH.
WOW! Super buy!! I bought a different name brand scale like this a year ago and paid almost 3 times the price. These scales are a fantastic buy and are very acurate and trouble free. If there is a better deal on a scale than this, I have not seen it. I like the fact that the freight is built directly into the price. Only thing I wish is that they had a package with a loading ramp as well.
Was this Review Helpful to you?    yes no

(3 out of 11 people found this review helpful)
Jim Anderson from Minneapolis
We purchased both the digital display unit and the 5000# floor scale and both work without any problems at all. Our employees find it to be a very easy scale to use.
Was this Review Helpful to you?    yes no

(3 out of 10 people found this review helpful)
Mary Daniels from Mpls.
We replaced our scale in our fulfillment center. Your site was recommended to me by a friend of mine. You have an excellent web site and product line. I will be buying more items from your site and will recommend it to others in our company. I had some questions about calibration of the scale. Your service and support people were very helpful and answered all my questions I had. They were very friendly. A pleasure to deal with. Thanks Mary D.
