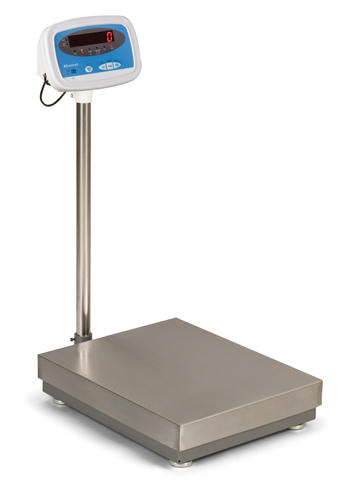

Model S100 Industrial Bench Scale
Model S100 Industrial Bench Scale
Click These for Larger Photos
  • Prices
  • Description
  • Shipping Information

DescriptionPriceQuantity
150 lb. Capacity x .02 lb. Resolution$366.67 Add to Cart
300 lb. Capacity x .05 lb. Resolution$366.67 Add to Cart
600 lb. Capacity x .1 lb. Resolution$366.67 Add to Cart
* Denotes Item(s) on Sale

This industrial bench scale is a low cost general purpose, self-contained industrial scale with RS-232 interface for simple non-trade weighing options. Made with mild steel base, stainless steel top cover and display pole, ABS plastic indicator.
Product Features:
Column or Desk Mount Indicator– Attach the indicator to the stainless steel column to provide a total height of 36.5" (927 mm) or remote the indicator up to 48" (1220 mm) without the use of column

RS-232 Interface– SBI 100 indicator can be configured for weight only or GTN via continuous output, print key, or stable weight. Choose bidirectional interface for communication to a PC

ON/OFF Switch– Remove power from indicator to
increase battery performance and life of product

Auto Shut-off Timer– Adjustable from 1-15 minutes or Off

Weight Hold Functions– Can be configurable for manual button release, automatic release on change in weight, or within +/- 3-50 scale divisions

Internal Rechargeable Battery– Low battery and battery charging annunciators indicate status of lead-acid battery. Battery is charged while AC power is active.

Units Switching– Can be configured for LB/KG switching, LB only, or KG only

Adjustable Resolution Setting– Factory default setting of 6,000 or 7,500 divisions can be modified to increase performance within certain applications

Adjustable Scale Setting– Power on zero, AZT, 4 filter settings, weight stability, overload, baud rate and
status bits

Robust Design– Re-enforced painted mild steel base,
stainless steel weight platter and pole, robust ABS
plastic indicator with strain relief connections, and heavy duty adjustable foot assemblies.

Product Specifications:
  • Construction– Mild steel base, stainless steel top cover and display pole, ABS plastic indicator
  • Tare– 100% subtractive
  • Display– Six digit 0.8" (20 mm) high red LED display with 8 separate LED annunciators
  • Annunciators– Net, zero, kg, lb, hold, low battery, battery charging, mains connected
  • RS-232– Standard 9 pin straight pass through interface connector, interface cable not included
  • Function Keys– Power Switch, On/Off/Zero, Tare, Units, Hold/Print
  • Power– 120V AC @ 60Hz, 12 VDC, 500mA UL Approved wall mount power adapters
  • Battery Life– Up-to 35 hours of continuous use
  • Operating Temp– 41 F to 95 F (5 C to 35 C)
  • Approvals– Full FCC compliance, UL/CUL power adapter, CE, WEEE directive

Usually Ships within 5 - 8 Days *
Shipping information and costs for this item will be emailed to you when you submit your order. NO orders are processed prior to ship costs being sent and confirmed by you.


Customers Who Bought This Item Also Purchased


View Previous Item

View Next Item

Product Reviews
Average Customer Rating  4 Stars  (Based on 4 reviews)
Write a Review
Scales > Industrial Bench Scale
These bench scales are great for general use bench-top weighing. Several capacities available.
Price Range: $366.67

Most Helpful Customer Reviews
(One person found this review helpful)
shanda from arkansas
I have one of these scales in my store, and it works great for weighing most anything...I love that they are easy to read, and can be cleaned if needed. The price is great.....quick delivery..no problems.
Was this Review Helpful to you?    yes no

(1 out of 3 people found this review helpful)
Norris from Atlanta
Big thumbs up - excellent product! Easy to use and yes!!! ? ?NO? assembly required!!! (Assembly sucks right? I never buy products I have to assemble. Why buy something new and not put together? It?s a big pain in the A$$) these need no assembly and no complicated adjusting. We took ours out of the box, plugged it in and we were weighing out parts in 5 minutes. They are not complicated to use. If I can use it anyone can no problem. I am giving this a 5 star rating so buy one of these. You won?t regret it.
Was this Review Helpful to you?    yes no

(One person found this review helpful)
Virgil Schneider from IL
Very high quality scale. Nicest bench scale I have seen or used.
Was this Review Helpful to you?    yes no

(0 out of 3 people found this review helpful)
Dick Putman from Valleyview
I was looking for a larger scale that I would use that was still legal for trade. This scale is a real workhorse. Works great!
