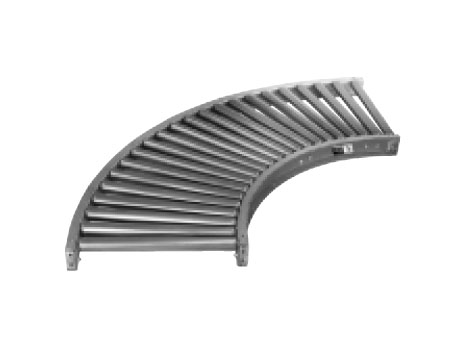

Medium Duty Gravity Roller Conveyor Curve
Medium Duty Gravity Roller Conveyor CurveMedium Duty Gravity Roller Conveyor Curve Dimensions
Click These for Larger Photos
  • Prices
  • Description
  • Shipping Information

DescriptionPriceQuantity
45 - 13" BF, 16" OAW, 1.9" Straight Rollers$140.32 Add to Cart
90 - 13" BF, 16" OAW, 1.9" Straight Rollers$244.92 Add to Cart
45 - 15" BF, 18" OAW, 1.9" Straight Rollers$146.49 Add to Cart
90 - 15" BF, 18" OAW, 1.9" Straight Rollers$257.09 Add to Cart
45 - 21" BF, 24" OAW, 1.9" Straight Rollers$164.85 Add to Cart
90 - 21" BF, 24" OAW, 1.9" Straight Rollers$293.63 Add to Cart
45 - 27" BF, 30" OAW, 1.9" Straight Rollers$232.56 Add to Cart
90 - 27" BF, 30" OAW, 1.9" Straight Rollers$429.49 Add to Cart
* Denotes Item(s) on Sale

For use in permanent installations, these medium duty gravity roller conveyor curves feature full-sized 1.9" diameter 16 ga. galvanized steel rollers set in a 3.5" deep powder coated steel frame. In addition to straight sections, this conveyor is a perfect way to carry light to medium weight packages among operations within your facility.
BF in product list stands for "Between Frame Width"

Weight Capacity:
  • 1,200 pounds max uniformly distributed load
  • 260 max load per roller

Features Include:
  • 3.5" x 10 ga. powder coated steel frame with 1.5" flanges
  • Bolt-in cross members provide lateral stability
  • Bolt-on end couplers for bolting sections together
  • Choose from 45- or 90-degree curves
  • 1.9" x 16 ga. galvanized steel tube rollers with grease-packed ball bearings on both ends
  • 7/16" spring retained hex axles
  • Inside radius (for widths up to 27"): 32.5"
  • Inside radius (for widths over 27"): 48"
Upon check out, please note your Over All Width & Color choice in the comments area.

Conveyor color choices are: Conveyor Blue, Machinery Grey, Black & Dark Green.
*Product may vary slightly from photos.

Usually Ships within 2 - 14 Days *
Shipping information and costs for this item will be emailed to you when you submit your order. NO orders are processed prior to ship costs being sent to and confirmed by you.
