Ball Transfer Table

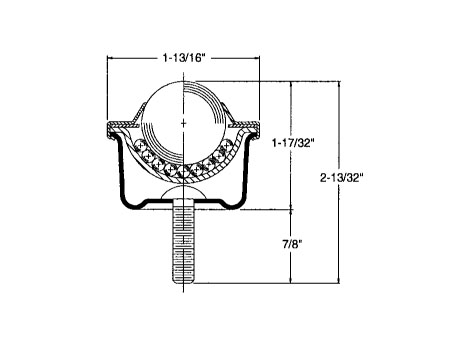

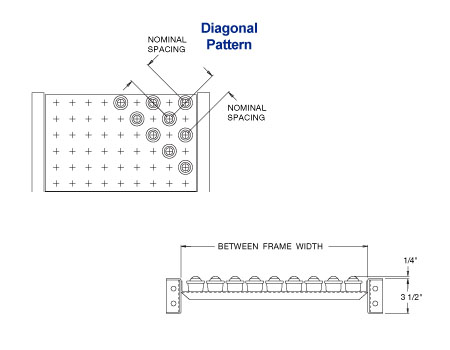

Ball Transfer TableBall Transfer Ball & Socket DimensionsBall Transfer Sizing DiagramsBall Transfer Cross Section
Click These for Larger Photos
  • Prices
  • Description
  • Shipping Information

3" Square Spacing - 13" BF, 16" OAW - 5 ' Length$422.61 Add to Cart
3" Square Spacing - 13" BF, 16" OAW - 10' Length$845.21 Add to Cart
3" Square Spacing - 15" BF, 18" OAW - 5' Length$485.73 Add to Cart
3" Square Spacing - 15" BF, 18" OAW - 10' Length$971.47 Add to Cart
3" Square Spacing - 21" BF, 24" OAW - 5' Length$675.27 Add to Cart
3" Square Spacing - 21" BF, 24" OAW - 10' Length$1350.53 Add to Cart
3" Square Spacing - 27" BF, 30" OAW - 5' Length$864.73 Add to Cart
3" Square Spacing - 27" BF, 30" OAW - 10' Length$1729.47 Add to Cart
* Denotes Item(s) on Sale

Used where products require free rotation in any direction, ball transfer tables (sometimes called tabletop conveyor) can be found in large and small conveyor systems across the country. These tables allow for free movement of packages in two dimensions. This includes, not only forward and backward movements, but also free rotation in any direction. These ball transfer tables are comprised of a full 3.5" deep frame with 1" dia. balls enclosed in a pressed steel outer shell with a 1/4"-20 stud for easy replacement.

Load Capacity Information:
  • Max uniformly distributed load for 5' tables is 3,100 lbs.
  • Max uniformly distributed load for 10' tables is 1,350 lbs.
  • Max load per ball is 65 lbs.
Note: Max product weight should not exceed 150 pounds as product may only rest on 3 ball transfers at one time.

Features Include:
  • 3.5" deep x 1.5" flanges, 10 ga. powder coated steel channel frame with 10 ga. powder coated steel for bolting to 1.9" dia. gravity roller conveyor or other select powered conveyors
  • Butt type end couplers for bolting sections together
  • 1" dia balls
These models all feature 3" square centered balls.

Upon check out, please note your Over All Width & Color choice in the comments area.

Conveyor color choices are: Conveyor Blue, Machinery Grey, Black & Dark Green.

*Product may vary slightly from photos.

Usually Ships within 2 - Days *
Shipping information and costs for this item will be emailed to you when you submit your order. NO orders are processed prior to ship costs being sent to and confirmed by you.
