Basic Model Lo-Profile Semi-Auto Stretch Wrapper
Basic Model Lo-Profile Semi-Auto Stretch WrapperDeluxe Model Lo-Profile Semi-Auto Stretch WrapperSuper Rapid Thread Carriage
Click These for Larger Photos
Product Images Product Movies
Photos
  • Prices
  • Description
  • Shipping Information

DescriptionPriceQuantity
Basic Model$7352.29 Add to Cart
Deluxe Model$10507.77 Add to Cart
* Denotes Item(s) on Sale

Choose from basic or deluxe models of these quality low profile stretch wrappers.
These spiral stretch wrap systems will wrap up to 30 loads per hour (variable with load size, number of wraps & forklift load/unload time) with a maximum load capacity of 4000# or 5000# for dynamic loads. (see Model Specs Below) The maximum load size is 50"W x 50"L x 87"H (max 71" diagonal). Unit construction features all structural steel construction, with a structural steel H-beam machine tower. Units feature a forklift truck portable base structure design – lifting tubes included for front and rear access. All units are electro-statically powder coated and include a loading ramp.

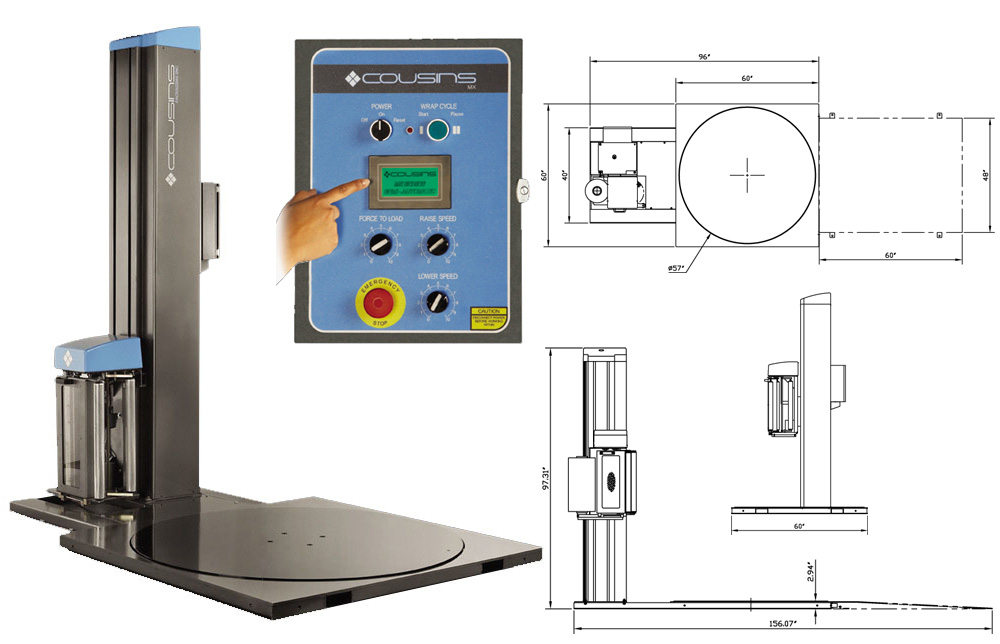

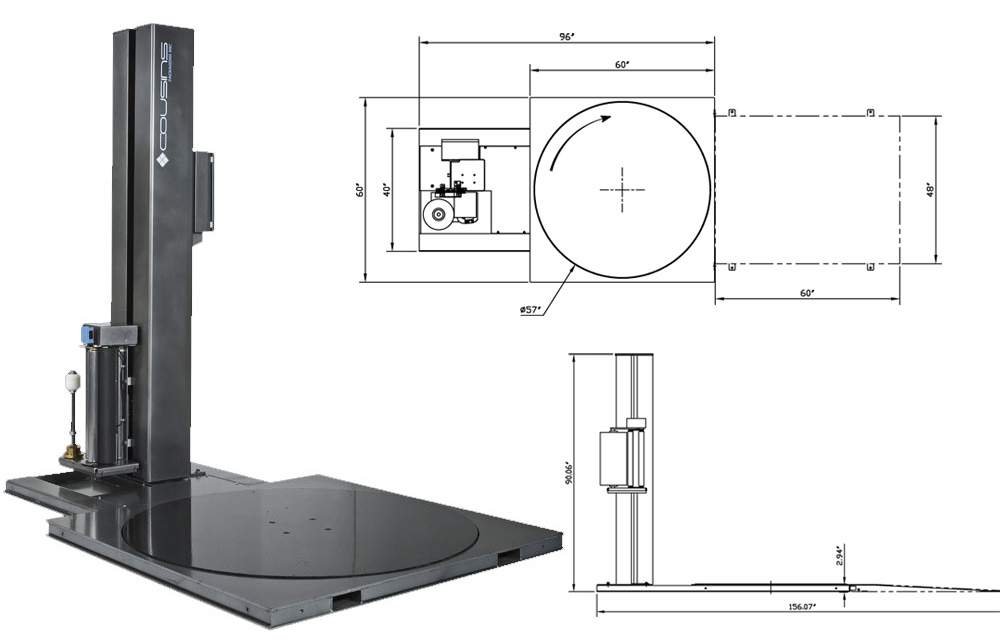

Basic Model:
Turntable Specifications:

Load Capacity: 4000#
  • 57” Diameter Laser-cut steel plate with surround deck protection - 3/8” thick
  • Maintenance free - 36 roller bearing support system
  • Turntable height 2.938” from floor
  • ANSI # 50 Direct Chain Drive c/w Chain tensioner
  • 3-15 RPM rotational speed c/w soft start acceleration
  • 1/2 HP DC Drive Motor
  • Final Revolution deceleration and positive stop alignment
  • Rugged surround deck for added protection, 3 sided loading and pit mounting
  • Front and back forklift ports for easy movement
  • Accu-Count exact turntable positioning system for additional film savings!

Film Carriage Specifications:
  • 1/2 HP DC variable speed motor
  • ANSI #40 direct chain drive c/w shock dampener
  • Maintenance free 12 point carriage guidance system

Film Delivery System Specifications:
  • Electro-Magnetic Web Tensioning System
  • Standard 20” roll width, 10” diameter
  • Carriage descent obstruction shut-off device for additional safety
  • Side mounted film carriage for operator convenience and safety

Film Capacity:
  • Accepts all commercial films wound on 3” diameter cores x 20” width
  • Accomodates damaged cores

Control Features:
  • Simple to operate
  • PANASONIC PLC
  • Power Off –On – Reset Switch & Power On Indicator Light
  • Single button Auto Wrap Cycle Start/Pause
  • Cycle pause for applying top sheets
  • Base or top wraps first program
  • Reinforce wrap control for mid-wrapping
  • Up only or up/down wrap program
  • Emergency Stop Button
  • Turntable Jog Switch
  • Film Carriage Lower/Raise Switch
  • Film Tension (Force-to-Load) Control
  • Separate Film Carriage Raise & Lower Speed Controls
  • Variable Turntable Speed Control
  • Automatic Load Height Detection Sensor
  • Separate 1 to 9 Revolution Top & Bottom Wrap Control
  • NEMA 12 Enclosure
  • Non-proprietary UL/CSA approved components

Electrical Requirements:
  • 115 Volts 1 Phase 60 Hz 15 Amps

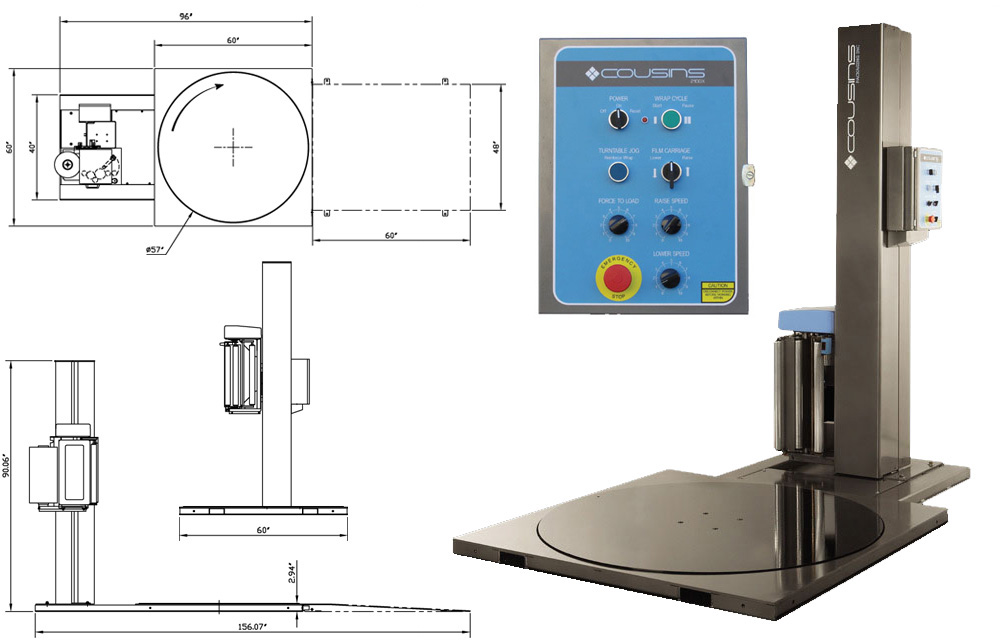

Deluxe Model:
All specifications same as basic model with these enhancements:

Load Capacity: 5000#
3/4 HP DC Drive Turntable Motor
Structural steel tube machine tower c/w sheet metal covers

Film Carriage Specifications:
  • 1/2 HP DC variable speed motor
  • Belt/Pulley with Anti-Fall Device
  • Maintenance free 12 point carriage guidance system

Film Delivery System Specifications:

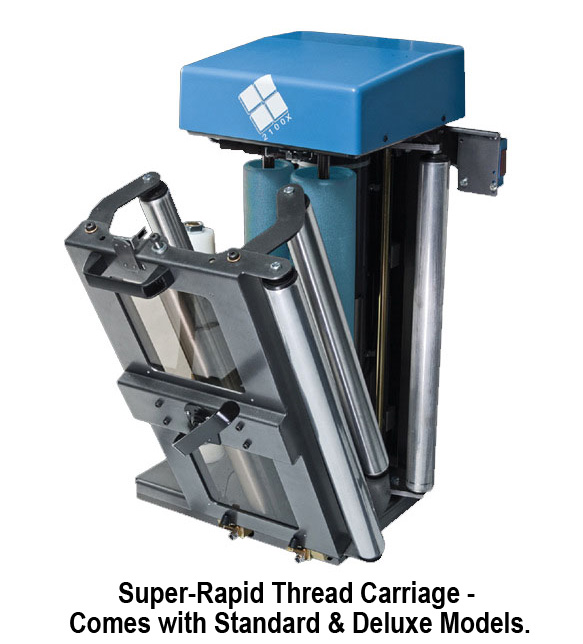

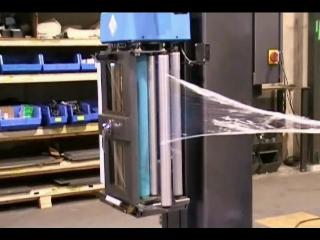

  • Rapid Thread™ 20” capacity pre-stretch film carriage
  • 1/2 HP DC variable speed motor
  • Fully electronic dynamic dancer corner compensation
  • 33 to 313% fixed stretch capability
  • Pre-stretch ratio variable by easy sprocket change
  • Rapid Thread™ (Safety Door) with auto power cut-off switch
  • Carriage descent obstruction shut-off device for additional safety
  • Side mounted film carriage for operator convenience and safety

Control Features:
  • Simple to operate
  • PANASONIC PLC with Touchscreen Operator Interface
  • Power Off – On – Reset Switch & Power On Indicator Light
  • Single button Auto Wrap Cycle Start/Pause
  • Cycle Pause for applying top sheets
  • Base or top wraps first wrap program
  • Reinforce wrap control for mid-wrapping
  • Up only or up/down wrap program
  • Emergency Stop Button
  • Turntable Jog Button
  • Film Carriage Lower/Raise Buttons
  • Film Tension (Force-to-Load) Control
  • Separate Film Carriage Raise & Lower Speed Controls
  • Variable Turntable Speed Control
  • Triple Beam Automatic Load Height Detection Sensor for dark or shiny loads
  • Separate 1 to 12 Revolution Top & Bottom Wrap Control
  • NEMA 12 Enclosure
  • Non-proprietary UL/CSA approved components

Electrical Requirements:
  • 115 Volts 1 Phase 60 Hz 20 Amps

Usually Ships within 2 - 5 Weeks *
Shipping information and costs for this item will be emailed to you when you submit your order. NO orders are processed prior to ship costs being sent and confirmed by you.


Customers Who Bought This Item Also Purchased


View Previous Item

View Next Item

Product Reviews
Average Customer Rating  4 Stars  (Based on 5 reviews)
Write a Review
Wrapping > Semi-Auto Low Profile Wrapper
These semi-auto lo-profile turntable spiral stretch wrap systems will wrap up to 30 loads per hour.
Price Range Range: $7352.29 - $10507.77

Most Helpful Customer Reviews
(One person found this review helpful)
Linda Roth from Rosemont
The wrapper is working fine now and is easy to use. At first, we had a problem with it. Talked Mark in support who was very helpfull. We found out we were using old wrap that was causing the tearing. Relaced it as per his suggestion with new wrap and it's working fine now. Your people were very helpful. Thanks.
Was this Review Helpful to you?    yes no

(1 out of 2 people found this review helpful)
Dennis from Washington State
I ordered 2 of these units for my shop and was suprised to see how compact but efficient they are. Great addition to any shop with stretch wrapping needs.
Was this Review Helpful to you?    yes no

(0 out of 1 people found this review helpful)
Art Stenton from NY
These machines are real dependable machines. Easy to use and operate and never any problems.
Was this Review Helpful to you?    yes no

Joey Baur from Hillcrest
You just won't find a better semi- auto machine on the market than this wrapper. Shop around and you'll see some of the other crap out there. Buy this machine!!
Was this Review Helpful to you?    yes no

BRIAN WILLIAMSON from CT
I HAVE ONE OF THESE UNITS ON MY WAREHOUSE RIGHT NOW, AND IT IS SUPER!!! THE TENSIONING SYSTEM IS PERFECT.IT WILL HANDLE ALL APPLICATIONS I HAVE. I AM IMPRESSED WITH THE QUALITY AND APPEARANCE OF THIS UNIT.
Was this Review Helpful to you?    yes no
