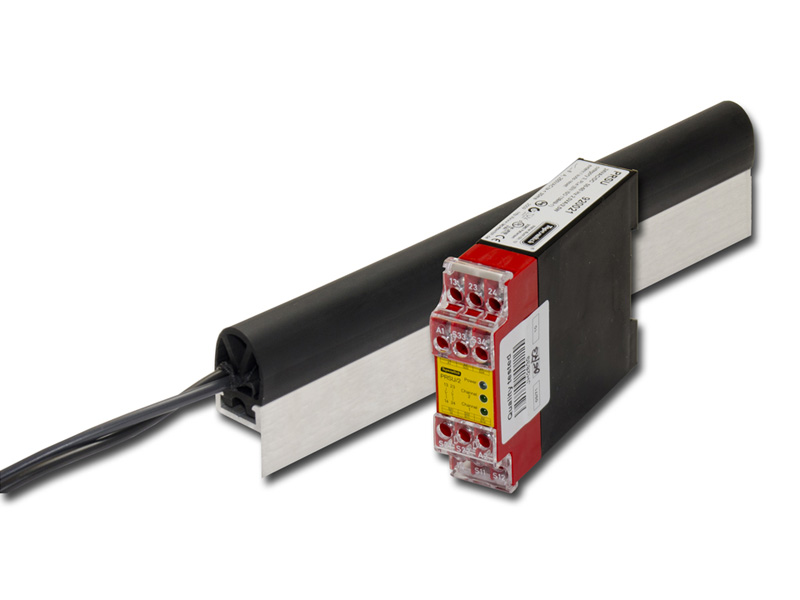

Medium Sensitivity Sensing Edge with Angled Channel and PRSU-4 (for 24V AC/DC Supply)

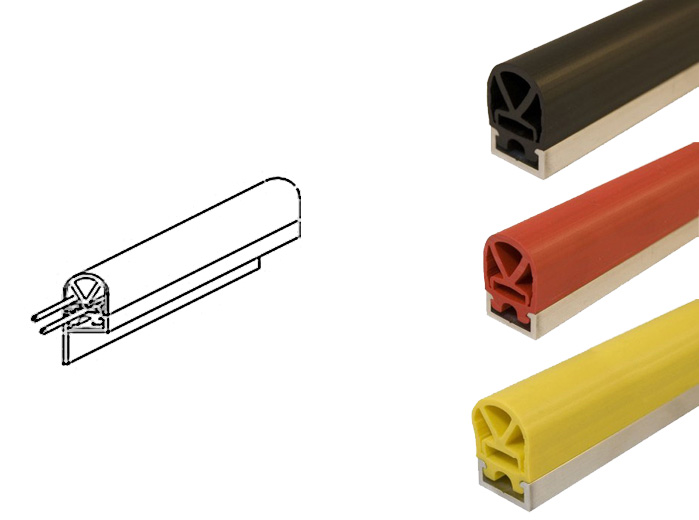

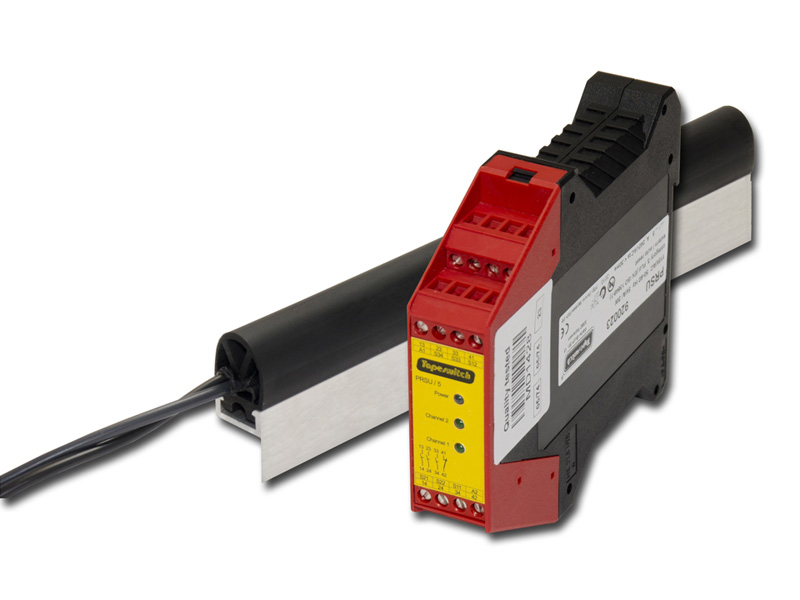

Medium Sensitivity Sensing Edge with Angled Channel and PRSU-4 (for 24V AC/DC Supply)Medium Sensitivity Sensing Edge with Angled Channel and PRSU-5 (for 110V AC Supply)Medium Sensitivity Sensing Edge Cross Section and Color Options
Click These for Larger Photos
  • Prices
  • Description
  • Shipping Information

DescriptionPriceQuantity
2' Long - for 24V AC/DC Supply$317.69 Add to Cart
2' Long - for 110V AC Supply$317.69 Add to Cart
3' Long - for 24V AC/DC Supply$334.21 Add to Cart
3' Long - for 110V AC Supply$334.21 Add to Cart
4' Long - for 24V AC/DC Supply$350.74 Add to Cart
4' Long - for 110V AC Supply$350.74 Add to Cart
5' Long - for 24V AC/DC Supply$367.26 Add to Cart
5' Long - for 110V AC Supply$367.26 Add to Cart
* Denotes Item(s) on Sale

Medium sensitivity sensing edges are a great general purpose, medium profile pressure sensitive edge. These strips require 4.5 lbs. of force to activate and are excellent for applications requiring side activation. The edges on these strips have a PVC housing which makes them resistant to water, oil, hydraulic fluid and coolant. The switching element contained in the strip is rated for a whopping 3 million operations at any point.
The sensing edges listed here mount into a snap-in channel made of aluminum. This channel features a right-angle mounting edge for easy alignment with any straight edge. (Flat channels are also available - please call for details.) 1 controller (details below) is also included with each sensing edge.

All sensing edges operate using a 4 lead fail-safe system. A very minimal current flows through the sensor at all times. If at any time, the current is disrupted by somebody or something activating the mat, the controller deactivates the machinery connected to the sensing edge.*

Applications for these sensing edges include:
  • Pinch Protection on Lifts
  • Obstruction detection on doors
  • Collision Sensors for Warehouse Vehicles
  • Impact detection on machinery edges
  • Contact Sensing on moving machinery
  • Applications requiring side activation

Controller Information
PRSU-5
  • For use with 110V ac supply
  • Detects Sensor, Cabling or Internal Faults
  • DIN rail mounting

PRSU-4
  • For use with 24V ac/dc supply
  • Detects Sensor, Cabling or Internal Faults
  • DIN rail mounting

Features Include
  • Actuation Force: 4.5 lb (20 N)
  • Over travel: 0.35" (9 mm) after activation
  • Environment: -10 to 145F (-23 to 63C)
  • Flanged Aluminum Mounting Channel Standard
  • 6' Cord Length Standard
  • Moisture, Chemical and Abrasion Resistant
  • Available in Black, Red, or Yellow colors - specify in 'Notes' field at time of order. If no color specified, the default color is Black.

** Please Note - these sensing edges can be built to suit just about any size, shape or application and are available in several other configurations and with many customizable options. Please call SJF if you think this is a product you could use, but don't see the exact model you need listed here. **

*This is a very simplified description of the principal behind these sensors. Here is the full description - direct from the manufacturer.
    A small current is constantly flowing through the sensor at all times, holding the relay coil energized at all times. The machine controls, interrupt, or stop circuitry is connected to the contacts of this relay. If the sensor is actuated, the relay coil will be shorted, causing the relay to de-energize. A resistor in series provides current limiting from overdrawing the power supply and limits the current through the sensor in the actuated position. If the sensor fails in the closed position the relay will be shorted and cannot be energized until the failure is corrected. If the sensor fails in the open position, the current path for the relay coil no longer exists and the relay coil cannot be energized until the current path is restored and the failure corrected.

Usually Ships within 2 - 3 Days *
All individual sensing edges can ship via any standard package service (UPS, FedEx, etc.)
