Edge of Dock Leveler in Open Position

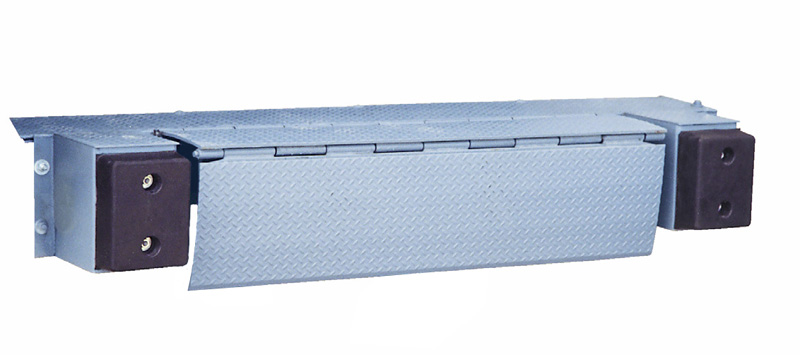

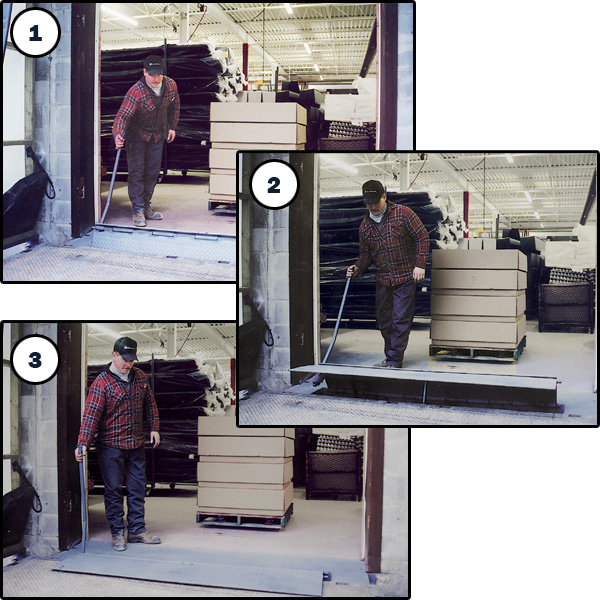

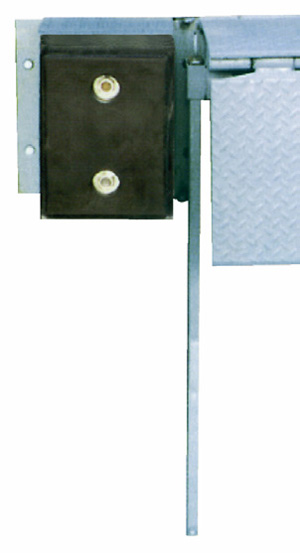

Edge of Dock Leveler in Open PositionEdge of Dock Leveler in Closed PositionEdge of Dock Leveler Activating LeverEdge of Dock Leveler Operation
Click These for Larger Photos
  • Prices
  • Description
  • Shipping Information
  • Discounts

DescriptionPriceQuantity
20,000# cap. - 66"W x 27.5"L Ramp - 96" OAW$994.87 Add to Cart
25,000# cap. - 66"W x 27.5"L Ramp - 96" OAW$1034.62 Add to Cart
20,000# cap. - 72"W x 27.5"L Ramp - 102" OAW$1148.72 Add to Cart
25,000# cap. - 72"W x 27.5"L Ramp - 102" OAW$1173.08 Add to Cart
* Denotes Item(s) on Sale

Edge-of-dock dock levelers attach to the face of your dock eliminating the need to cut a custom pit.
These levelers are built to spec utilizing a simple and time tested design which results in value, function and operation that you wont find in other edge-of-dock levelers on the market today.

These mechanical edge-of-dock levelers are lifted and lowered smoothly and easily with an activating lever. Together with a torsion spring mounted under the deck, this results in very little effort required to operate the leveler. Grease fittings along the length of the lip hinge allow for easy maintenance.

Features Include
  • High-Strength 4-way safety tread plate, deck and lip (55,000 PSI yield)
  • 27.5" Deck and Lip span
  • Simple, reliable torsion spring operation.
  • Heavy-duty continuous hinges with grease fittings for superior strength and lubrication
  • Built-in Bumper blocks with molded rubber bumpers
  • Safe, Convenient bar lift design allows the leveler to be easily tilted back and then forward onto the truck, eliminating heavy pulling & pushing.
  • 3" Effective Working Range
  • 5" Operating Range
  • Lag Plate option included for installation on docks with no metal edge.

Usually Ships within 3 - 4 Weeks *
Shipping information and costs for this item will be emailed to you when you submit your order. NO orders are processed prior to ship costs being sent and confirmed by you.


The following discounts will be applied to this item when added to your shopping cart in the quantities shown.

Quantity
Discount
2
5
2%
3%


Customers Who Bought This Item Also Purchased


View Previous Item

View Next Item

Product Reviews
Average Customer Rating  5 Stars  (Based on 10 reviews)
Write a Review
> Read All Reviews   Dock Equipt. > Mechanical Edge-Of-Dock Levelers
A truly economic way to handle dock operations. These mechanical units are perfect for most small businesses.
Price Range Range: $994.87 - $1173.08

Most Helpful Customer Reviews
(3 out of 4 people found this review helpful)
TF Pride Construction Corp. from Denver, CO
I recommend this product to any contractor or business Owner that is planning on installing dock leveling equipment. This product will exceed your best expectations. It is much more cost effective to install, and it is easier to operate than the standard manually operated dock leveler. *10 Stars* -Chad Higgens, Dir. of Operations.
Was this Review Helpful to you?    yes no

(3 out of 5 people found this review helpful)
Greenhill Services from Westfield Mass
As an installer of these levelers i installed two of them on my dock for the eas of operation. So far they are working great. I think I will be happy with them for years to come.
Was this Review Helpful to you?    yes no

(3 out of 4 people found this review helpful)
Kathy Ann Marris from Atlanta, GA
We used these to replace the heavy dock plates we were using. 1 person can easily use them. I think they are a much safer option than dock plates.
Was this Review Helpful to you?    yes no

(3 out of 4 people found this review helpful)
Brad Klugman from UT
I shopped around a lot and found these the best value. Shipped quick, installed easy and is working like a charm.
Was this Review Helpful to you?    yes no

(2 out of 5 people found this review helpful)
Gary Burnhagen from Burnsville, MN
I would recommend these to anyone simply because they are a much cheaper alternative to a full-fledged dock leveler. You don't have any pits to pour like you normally do with most levelers. With these you just bolt them on the edge of any dock and you're up and running.
Was this Review Helpful to you?    yes no
