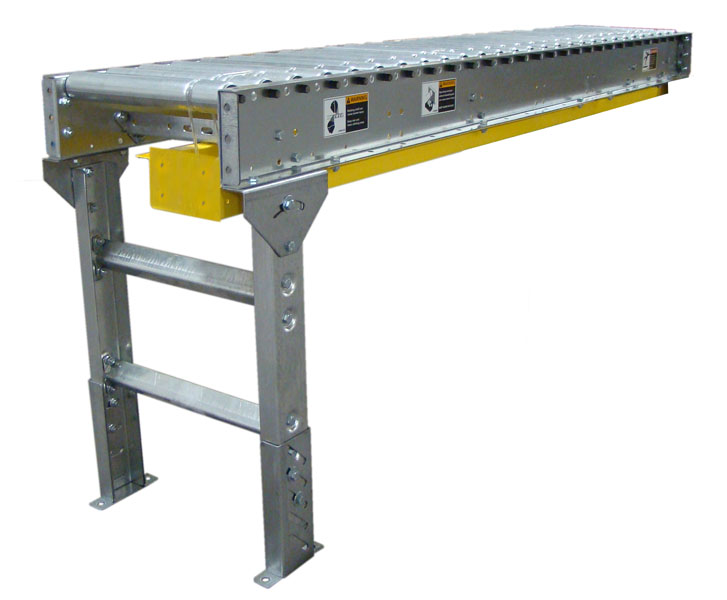

SJF Lineshaft Conveyor Straight Section
SJF Lineshaft Conveyor Straight SectionLineshaft Conveyor Straight Section Dimensional DrawingLineshaft Conveyor Straight Section Without Add Ons
Click These for Larger Photos
  • Prices
  • Description
  • Shipping Information

DescriptionPriceQuantity
13" Between Frame Width x 5' Long$490.67 Add to Cart
13" Between Frame Width x 7' Long$670.67 Add to Cart
13" Between Frame Width x 10' Long$981.33 Add to Cart
16" Between Frame Width x 5' Long$562.67 Add to Cart
16" Between Frame Width x 7' Long$769.33 Add to Cart
16" Between Frame Width x 10' Long$1124.00 Add to Cart
22" Between Frame Width x 5' Long$569.33 Add to Cart
22" Between Frame Width x 7' Long$778.67 Add to Cart
22" Between Frame Width x 10' Long$1138.67 Add to Cart
32" Between Frame Width x 5' Long$656.00 Add to Cart
32" Between Frame Width x 7' Long$900.00 Add to Cart
32" Between Frame Width x 10' Long$1312.00 Add to Cart
* Denotes Item(s) on Sale

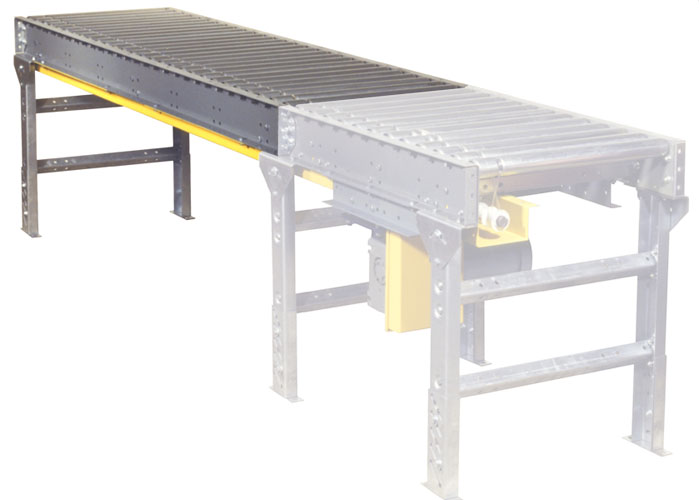

These lineshaft straight sections are the workhorses of a lineshaft conveyor system. Used in combination with lineshaft drives, these straight sections are available in a variety of lengths to create a myriad of different conveyor runs. Lineshaft straight sections must be 'slaved' to a drive unit in order to operate.

How does Lineshaft Work?
Lineshaft powered roller conveyors are a truly innovative design among powered conveyors.The basic design utilizes rollers that are driven by a urethane belt from a drive shaft under the roller bed which runs the length of the conveyor. This driveshaft is turned by a motor and transmits its rotation via small urethane belts to individual rollers.

This type of conveyor also provides a basic accumulation function. When back-pressure is applied to the product being conveyed, the spools driving the rollers under the product will slip on the drive shaft providing very minimal back-pressure.

Product Specifications
  • 1.9" diameter x 16 gauge galvanized rollers
  • 7/16" hex, spring retained steel axles
  • Plain grease packed bearings
  • Rollers set 1/4" high on 3" centers
  • 5-1/2" x 1-1/2" x 12 gauge powder coated formed steel channel frames
  • Bolted construction
  • 5' and 7' long conveyors each come with one H-style leg support - 30" to top of roller
  • 10' long conveyors come with two H-style leg supports - 30" to top of roller

*Stand-alone components require an additional support. Please call for more information.

*Product may vary slightly from photos.

Usually Ships within 2 - 3 Weeks *
Shipping information and costs for this item will be emailed to you when you submit your order. No orders are processed prior to ship costs being sent to and confirmed by you.


Customers Who Bought This Item Also Purchased


View Previous Item

View Next Item

Product Reviews
Write a Review
Conveyor - Power > SJF Lineshaft Conveyor Straight Sections
Lineshaft straight sections are used in conjunction with drive units to create long runs of powered roller conveyor.
Price Range Range: $490.67 - $1312.00
