Single Wheel Poly Pallet Flow (Also shows ramp stop on end of rail)

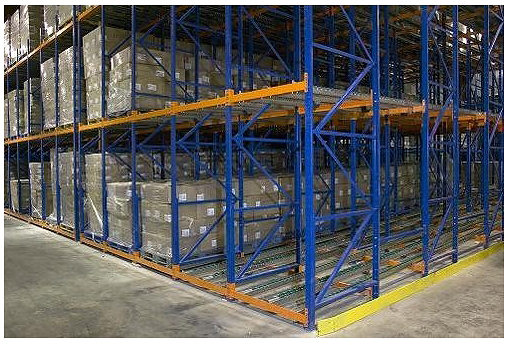

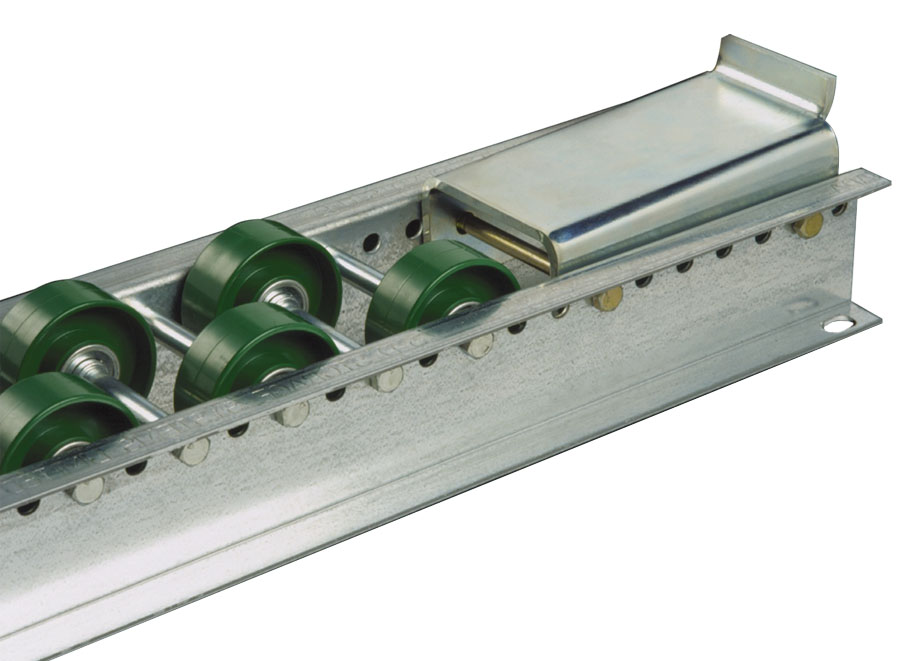

Single Wheel Poly Pallet Flow (Also shows ramp stop on end of rail)Dual Wheel Poly Pallet Flow (Also shows ramp stop on end of rail)A rack mounted poly wheel pallet flow system in a freezer
Click These for Larger Photos
  • Prices
  • Description
  • Shipping Information
  • Discounts

DescriptionPriceQuantity
98" L, Single Row - 3" roller c/c$132.31 Add to Cart
98" L, Dual Staggered Rows - 2" roller c/c$170.77 Add to Cart
148" L, Single Row - 3" roller c/c$186.15 Add to Cart
148" L, Dual Staggered Rows - 2" roller c/c$241.54 Add to Cart
* Denotes Item(s) on Sale

Poly wheel pallet flow rail can be found in situations where element resistance is more of an issue – like a cold-storage or freezer environment. These rails are made for two or three-deep pick systems. The rails can be configured in either single wheel (inline) or double wheel (staggered) runs. Poly wheels are an impact resistant polycarbonate formula suited to wide range of temperatures. The first 12” of wheels (at load ends ) are zinc die cast impact wheels. Staggered wheels are mounted on 1.5” centers when staggered and 2” centers when inline. The side frame supports are created using 12 gauge galvanized steel and measure 1” x 3” x 1”. Each rail has one ramp stop at one end.
PLEASE NOTE: A Minimum of 6 rails must be purchased per order. SJF will not process orders for less than 6 ea. flow rails.

Features Include:

  • Wheel Size: 1.9” Dia
  • Wheel Weight Capacity (per wheel): 150 pounds
  • 1 Ramp stop included on each rail
  • Mounting Hardware Included

Usually Ships within 1 - 2 Weeks *
Shipping information and costs for this item will be emailed to you when you submit your order. NO orders are processed prior to ship costs being sent to and confirmed by you.


The following discounts will be applied to this item when added to your shopping cart in the quantities shown.

Quantity
Discount
12
24
50
100
2%
4%
5%
6%


Customers Who Bought This Item Also Purchased


View Previous Item

View Next Item

Product Reviews
Write a Review
Flow Racks > Poly Wheel Pallet Flow Rails
Create a durable dynamic storage system with this poly wheel pallet flow rail.
Price Range Range: $132.31 - $241.54
